ȣĪ¹øÈ£
(Bearing
No.)

³ª »ç ±Ô °Ý
(Thread size)

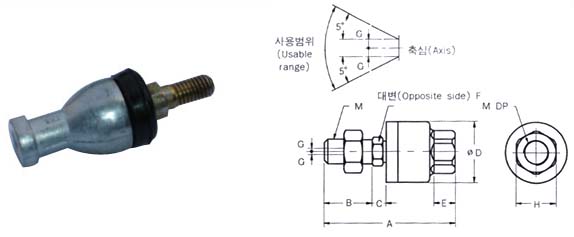

ÁÖ ¿ä Ä¡ ¼ö (Dimensions) mm Àû¿ë½Ç¸°´õ³»°æ (Bpre diamater of cylinder)
¡Ë
M DP A B C  ¡ËD E  F H ¿äµ¿ °¢µµ
(Tilting angle)
Çã¿ëÆí½É·® (Permissible excntricity) G ÀÎÀå¾ÐÃà·Â (Tensile &compressive strength) Max Kgf
FJ 5
5 x 0.8
7
34.5
14
2
16
5
6
10
10¢ª
0.5
12
10, 15
FJ 6 6 x 1 7 34.5 14 2 16 5 6 10 10¢ª 0.5 12 15
FJ 8 8 x 1.25 8 44 - 4.5 21 7 7 13 10¢ª 0.5 110 20
FJ 10 10 x 1.25 9 49.5 - 5 24 8 8 17 10¢ª 0.5 250 25, 30
FJ 12 12 x 1.75 13 60 - 6 31 11 11 22 10¢ª 0.75 440 30, 40
FJ 14 14 x 1.5 9 60 - 6 31 11 11 22 10¢ª 0.75 600 40
FJ 16 16 x 1.5 15 71.5 - 7.5 41 13.5 14 27 10¢ª 1 1100 50
FJ18 18 x 1.5 15 7435 - 7.5 41 13.5 14 27 10¢ª 1 1100 50, 63
FJ 20 20 x 2.5 18 90.5 30 9.5 50 16 19 32 10¢ª 1.25 1800 80
FJ 22 22 x 1.5 18 89.5 - 9.5 50 16 19 32 10¢ª 1.25 1800 80
FJ 24 24 x 3 24 110 35 11.5 59.5 20 24 41 10¢ª 2.0 2800 100
FJ 26 26 x 1.5 24 110 - 11.5 59.5 20 24 41 10¢ª 2 2800 100
FJ 30 30 x 1.5 38 152 45 14 79 22 30 46 10¢ª 2.5 5400 125, 140
FJ 36 36 x 1.5 42 178 55 16 96 24 36 55 10¢ª 3.0 7100 160
