호칭번호
(Bearing
No.)

질량 (Mass)

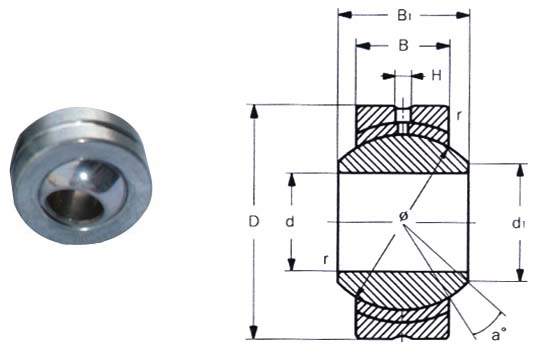

gr.		 주 요 치 수 (Dimensions) mm 요동각도
(Tilting angle)
a˚ 		정부하용량 (Basic Static Load Ratings) Co/Kgf
d D B  B1 d1 H ￠ r

JS 5
8.5
5
16
6
8
7.7
1.0
11.112
0.5
13
400

JS 6

 13 6 18 6.75 9 9 1.0 12.7 0.5 13 510

JS 8

 24 8 22 9 12 10.4 1.0 15.875 0.5 13 860

JS 10

 39 10 26 10.5 14 12.9 1.2 19.05 0.5 13 1200

JS 12

 58 12 30 12 16 15.4 1.5 22.225 0.5 13 1600

JS 14

 84 14 34 13.5 19 16.9 1.5 25.4 0.5 15 2060

JS 16

 111 16 38 15 21 19.4 2.5 28.575 0.5 15 2570

JS18

 160 18 42 16.5 23 21.9 2.5 31.75 0.5 15 3140

JS 20

 210 20 46 18 25 24.4 2.5 34.925 0.5 15 3770

JS 22

 265 22 50 20 28 25.8 2.5 38.1 0.5 15 4570

JS 25

 390 25 56 22 31 29.6 3 42.862 0.5 15 -

JS 30

 610 30 66 25 37 34.8 3 50.4 0.5 15 -
