호칭번호 (Bearing No.)

 질 량
(Mass)
gr.		 주 요 치 수 (Dimensions) mm
표 준 형
(Unsealed)		 씰 형

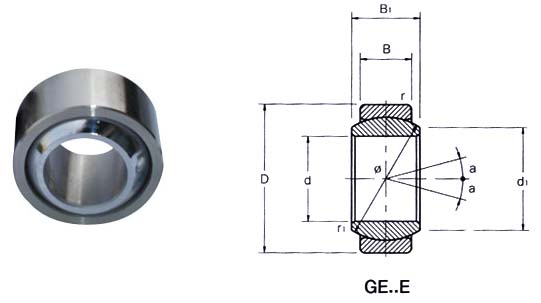

(Sealed)		 d D  B  B1 d1
GE 10E

12
10
19
6
9
13
GE 12E   17 12 22 7 10 15
GE 15ES GE 15ES-2RS 32 15 26 9 12 18.4
GE 17ES GE 17ES-2RS 49 17 30 10 14 20.7
GE 20ES GE 20ES-2RS 65 20 35 12 16 24.2
GE 25ES GE 25ES-2RS 115 25 42 16 20 29.3
GE 30ES GE 30ES-2RS 160 30 47 18 22 34.2
GE 35ES GE 35ES-2RS 258 35 55 20 25 39.8
GE 40ES GE 40ES-2RS 315 40 62 22 28 45
GE 45ES GE 45ES-2RS 413 45 68 25 32 50.8
GE 50ES GE 50ES-2RS 560 50 75 28 35 56
GE 60ES GE 60ES-2RS 1100 60 90 36 44 66.8
GE 70ES GE 70ES-2RS 1540 70 105 40 49 77.9
GE 80ES GE 80ES-2RS 2290 80 120 45 55 89.4
GE 90ES GE 90ES-2RS 2820 90 130 50 60 98.1
GE 100ES GE 100ES-2RS 4430 100 150 55 70 109.5
GE 110ES GE 110ES-2RS 4940 110 160 55 70 121.2
GE 120ES GE 120ES-2RS 8120 120 180 70 85 135.6
GE 140ES GE 140ES-2RS 11400 140 210 70 90 155.9
GE 160ES GE 160ES-2RS 14400 160 230 80 105 170.2
GE 180ES GE 180ES-2RS 18900 180 260 80 105 199
GE 200ES GE 200ES-2RS 28100 200 290 100 130 213.5
GE 220ES GE 220ES-2RS 36100 220 320 100 135 239.6
GE 240ES GE 240ES-2RS 40400 240 340 100 140 265.3
