호칭번호
(Bearing
No.)

질량 (Mass)

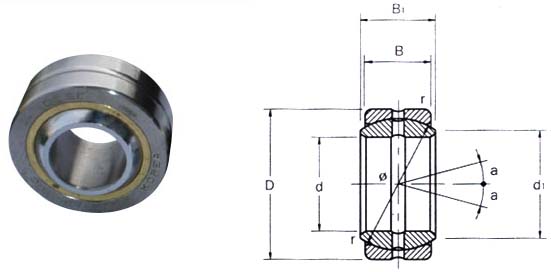

gr.		 주 요 치 수 (Dimensions) mm 볼 직경 (spherical Diameter) mm 정부하용량 (Basic Static Load Ratings) Co/Kgf
d D B  B1 d1 ￠ r a
SB 12
19
12
22
9
11
14
18
0.5
7
390
9720

SB 15

 28 15 26 11 13 17.5 22 0.5 6 580 14500

SB 20

 53 20 32 14 16 23 28 0.5 4 940 23500

SB 22

 85 22 37 16 19 25.5 32 0.5 6 1230 30700

SB 25

 116 25 42 18 21 29 36 0.5 5 1560 38900

SB 30

 225 30 50 23 27 36 45 1 6 2480 62100

SB 35

 300 35 55 26 30 40 50 1 6 3120 78000

SB 40

 375 40 62 28 33 44 55 1 6 3700 92400

SB 45

 600 45 72 31 36 50.5 62 1 5 4610 115000

SB 50

 870 50 80 36 42 58.5 72 1 5 6220 156000

SB 55

 1260 55 90 40 47 641.5 80 1 6 7680 192000

SB 60

 1700 60 100 45 53 72.5 90 1 6 9720 243000

SB 65

 2050 65 105 47 55 76 94 1 5 10600 265000

SB 70

 2220 70 110 50 58 81.5 100 1 5 12000 300000

SB 75

 3020 75 120 55 64 89.5 110 1 5 14500 363000

SB 80

 3980 80 130 60 70 97.5 120 1 5 17300 432000

SB 85

 4290 85 135 63 74 100.5 125 1 6 18900 473000

SB 90

 4710 90 140 65 76 105.5 130 1 5 20300 507000

SB 95

 6050 95 150 70 82 113.5 140 1 5 23500 588000

SB 100

 7420 100 160 75 88 121.5 150 1.5 5 27000 675000

SB 110

 8550 110 170 80 93 130 160 1.5 5 30700 768000

SB 115

 10300 115 180 85 98 132.5 165 1.5 5 33700 842000

SB 120

 12400 120 190 90 105 140 175 1.5 6 378200 945000

SB 130

 13800 130 200 95 110 148.5 185 1.5 5 42200 1050000

SB 150

 17000 150 220 105 120 166 205 1.5 5 51700 1290000
